Systems

Turn-key DF and COMINT systems for airborne, maritime, and ground-based missions. Filter by domain, capability, and configuration.

Modular by design — Tech Comm systems support multiple packaging configurations and architecture options

Explore Options

Browse Systems System Architecture & Delivery Options

Showing 39 systems

Titan Family

Focused frequency Doppler DF, maritime and fixed-station

System	Antenna	Frequency	Domain	Architecture	SAR	COMINT
Titan TC-9113-M	TC-6527-3	200 kHz – 174 MHz	MaritimeGround Vehicle	Doppler	—	—
Titan-S TC-9113-MS	TC-6527-3	200 kHz – 174 MHz	MaritimeGround Vehicle	Doppler		—
Titan TC-9114-F	TC-6527-4 TC-6527-4	200 kHz – 174 MHz	Mobile / Fixed Station	Doppler	—	—
Titan-S TC-9114-FS	TC-6527-4 TC-6527-4	200 kHz – 174 MHz	Mobile / Fixed Station	Doppler		—

Hermes Family

Smallest SWaP, airborne and ground (30–1500 MHz)

System	Antenna	Frequency	Domain	Architecture	SAR	COMINT
Hermes TC-9331-A	TC-8111-3 TC-8111-3	30–1500 MHz	AirborneMobile / Fixed StationGround Vehicle	Single-Channel	—	—
Hermes-S TC-9331-AS	TC-8111-3 TC-8111-3	30–1500 MHz	AirborneMobile / Fixed StationGround Vehicle	Single-Channel		—
Hermes-D TC-9332-A	TC-8111-3 TC-8111-3	30–1500 MHz	AirborneMobile / Fixed StationGround Vehicle	Dual-Channel	—	—
Hermes-DS TC-9332-AS	TC-8111-3 TC-8111-3	30–1500 MHz	AirborneMobile / Fixed StationGround Vehicle	Dual-Channel		—
Hermes-C TC-9631-A	TC-8111-3 TC-8111-3	30–1500 MHz	AirborneMobile / Fixed StationGround Vehicle	Single-Channel	—
Hermes-SC TC-9631-AS	TC-8111-3 TC-8111-3	30–1500 MHz	AirborneMobile / Fixed StationGround Vehicle	Single-Channel
Hermes-DC TC-9632-A	TC-8111-3 TC-8111-3	30–1500 MHz	AirborneMobile / Fixed StationGround Vehicle	Dual-Channel	—
Hermes-DSC TC-9632-AS	TC-8111-3 TC-8111-3	30–1500 MHz	AirborneMobile / Fixed StationGround Vehicle	Dual-Channel

Apollo Family

Extended-range airborne and ground (30–3000 MHz)

System	Antenna	Frequency	Domain	Architecture	SAR	COMINT

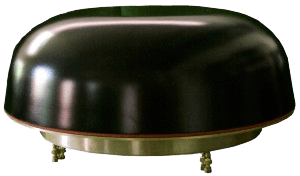

Apollo TC-9331-AE	TC-8111-3E TC-8111-3E	30–3000 MHz	AirborneMobile / Fixed StationGround Vehicle	Single-Channel	—	—
Apollo-D TC-9332-AE	TC-8111-3E TC-8111-3E	30–3000 MHz	AirborneMobile / Fixed StationGround Vehicle	Dual-Channel	—	—
Apollo-S TC-9331-ASE	TC-8111-3E TC-8111-3E	30–3000 MHz	AirborneMobile / Fixed StationGround Vehicle	Single-Channel		—
Apollo-DS TC-9332-ASE	TC-8111-3E TC-8111-3E	30–3000 MHz	AirborneMobile / Fixed StationGround Vehicle	Dual-Channel		—
Apollo-C TC-9631-AE	TC-8111-3E TC-8111-3E	30–3000 MHz	AirborneMobile / Fixed StationGround Vehicle	Single-Channel	—
Apollo-DC TC-9632-AE	TC-8111-3E TC-8111-3E	30–3000 MHz	AirborneMobile / Fixed StationGround Vehicle	Dual-Channel	—
Apollo-SC TC-9631-ASE	TC-8111-3E TC-8111-3E	30–3000 MHz	AirborneMobile / Fixed StationGround Vehicle	Single-Channel
Apollo-DSC TC-9632-ASE	TC-8111-3E TC-8111-3E	30–3000 MHz	AirborneMobile / Fixed StationGround Vehicle	Dual-Channel

Artemis Family

Broadest-range airborne and ground (30–6000 MHz)

System	Antenna	Frequency	Domain	Architecture	SAR	COMINT
Artemis-S TC-9361-ASE	TC-8111-6 TC-8111-6	30–6000 MHz	AirborneMobile / Fixed StationGround Vehicle	Single-Channel		—
Artemis-DS TC-9362-ASE	TC-8111-6 TC-8111-6	30–6000 MHz	AirborneMobile / Fixed StationGround Vehicle	Dual-Channel		—
Artemis TC-9361-AE	TC-8111-6 TC-8111-6	30–6000 MHz	AirborneMobile / Fixed StationGround Vehicle	Single-Channel	—	—
Artemis-D TC-9362-AE	TC-8111-6 TC-8111-6	30–6000 MHz	AirborneMobile / Fixed StationGround Vehicle	Dual-Channel	—	—
Artemis-C TC-9661-AE	TC-8111-6 TC-8111-6	30-6000 MHz	AirborneMobile / Fixed StationGround Vehicle	Single-Channel	—
Artemis-DC TC-9662-AE	TC-8111-6 TC-8111-6	30-6000 MHz	AirborneMobile / Fixed StationGround Vehicle	Dual-Channel	—
Artemis-SC TC-9661-ASE	TC-8111-6 TC-8111-6	30-6000 MHz	AirborneMobile / Fixed StationGround Vehicle	Single-Channel
Artemis-DSC TC-9662-ASE	TC-8111-6 TC-8111-6	30-6000 MHz	AirborneMobile / Fixed StationGround Vehicle	Dual-Channel

Poseidon Family

Maritime-hardened, also deployable for ground and fixed-station (30–3000 MHz)

System	Antenna	Frequency	Domain	Architecture	SAR	COMINT
Poseidon TC-9331-ME	TC-8110 TC-8110	30–3000 MHz	Maritime	Single-Channel	—	—
Poseidon-S TC-9331-MSE	TC-8110 TC-8110	30–3000 MHz	Maritime	Single-Channel		—
Poseidon-D TC-9332-ME	TC-8110 TC-8110	30–3000 MHz	MaritimeGround VehicleMobile / Fixed Station	Dual-Channel	—	—
Poseidon-DS TC-9332-MSE	TC-8110 TC-8110	30–3000 MHz	MaritimeGround VehicleMobile / Fixed Station	Dual-Channel		—
Poseidon-DSC TC-9632-MSE	TC-8110 TC-8110	30–3000 MHz	Maritime	Dual-Channel

Triton Family

Extended-range maritime, also deployable for ground and fixed-station (30–6000 MHz)

System	Antenna	Frequency	Domain	Architecture	SAR	COMINT
Triton-D TC-9362-ME	TC-8110-6 TC-8110-6	30-6000 MHz	MaritimeGround VehicleMobile / Fixed Station	Dual-Channel	—	—
Triton-DS TC-9362-MSE	TC-8110-6 TC-8110-6	30-6000 MHz	MaritimeGround VehicleMobile / Fixed Station	Dual-Channel		—
Triton-DC TC-9662-ME	TC-8110-6 TC-8110-6	30-6000 MHz	MaritimeGround VehicleMobile / Fixed Station	Dual-Channel	—
Triton-DSC TC-9662-MSE	TC-8110-6 TC-8110-6	30-6000 MHz	MaritimeGround VehicleMobile / Fixed Station	Dual-Channel

Atlas Family

Man-portable

System	Antenna	Frequency	Domain	Architecture	SAR	COMINT

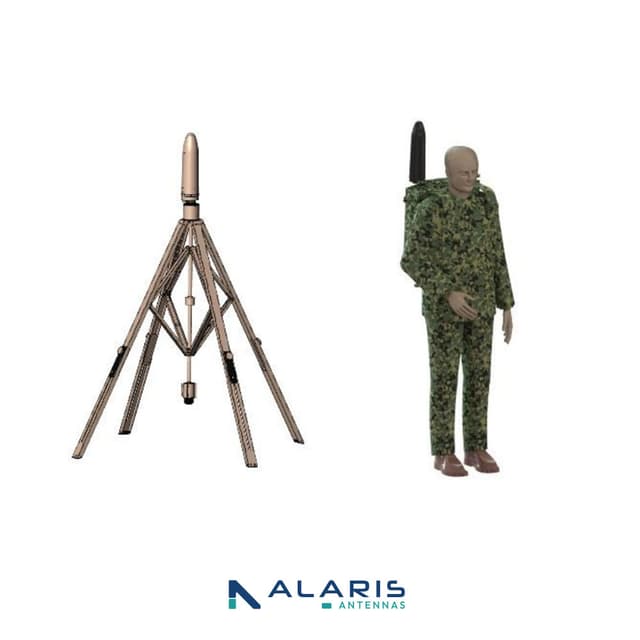

Atlas TC-9331-MO257	Alaris DF-A0257 Alaris DF-A0257	20–6000 MHz	Man-Pack	Single-Channel	—	—
Atlas-D TC-9332-MO257	Alaris DF-A0257 Alaris DF-A0257	30–6000 MHz	Man-Pack	Dual-Channel	—	—

Architecture & Packaging

System Architecture & Delivery Options

Tech Comm systems are modular by design — antenna, receiver, processor, and workstation components can be packaged and delivered in multiple configurations to meet platform-specific requirements. This represents the typical modular architecture options. Tech Comm frequently modifies system architectures to meet customer-specific mission and platform requirements.

All system pathways are supported by a single DF antenna. This represents the typical modular architecture options. Tech Comm frequently modifies system architectures to meet customer-specific mission and platform requirements.

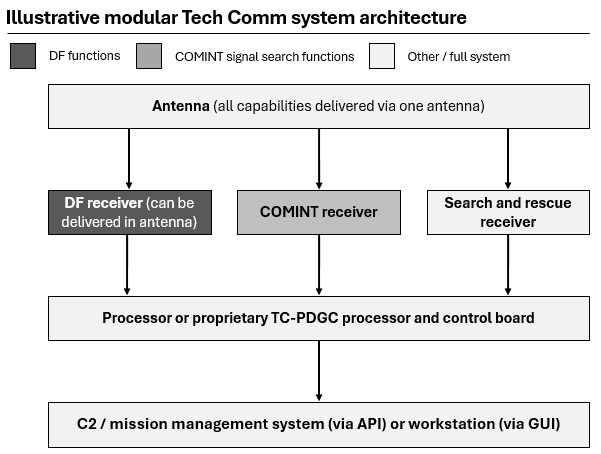

System architecture diagram showing antenna, receiver, processor, and workstation pathways

TC-PDGC: Bare-metal hardware — no general purpose OS. Limits available I/O and system functions, reducing attack surface and mitigating cyber vulnerabilities.

Lowest SWaP

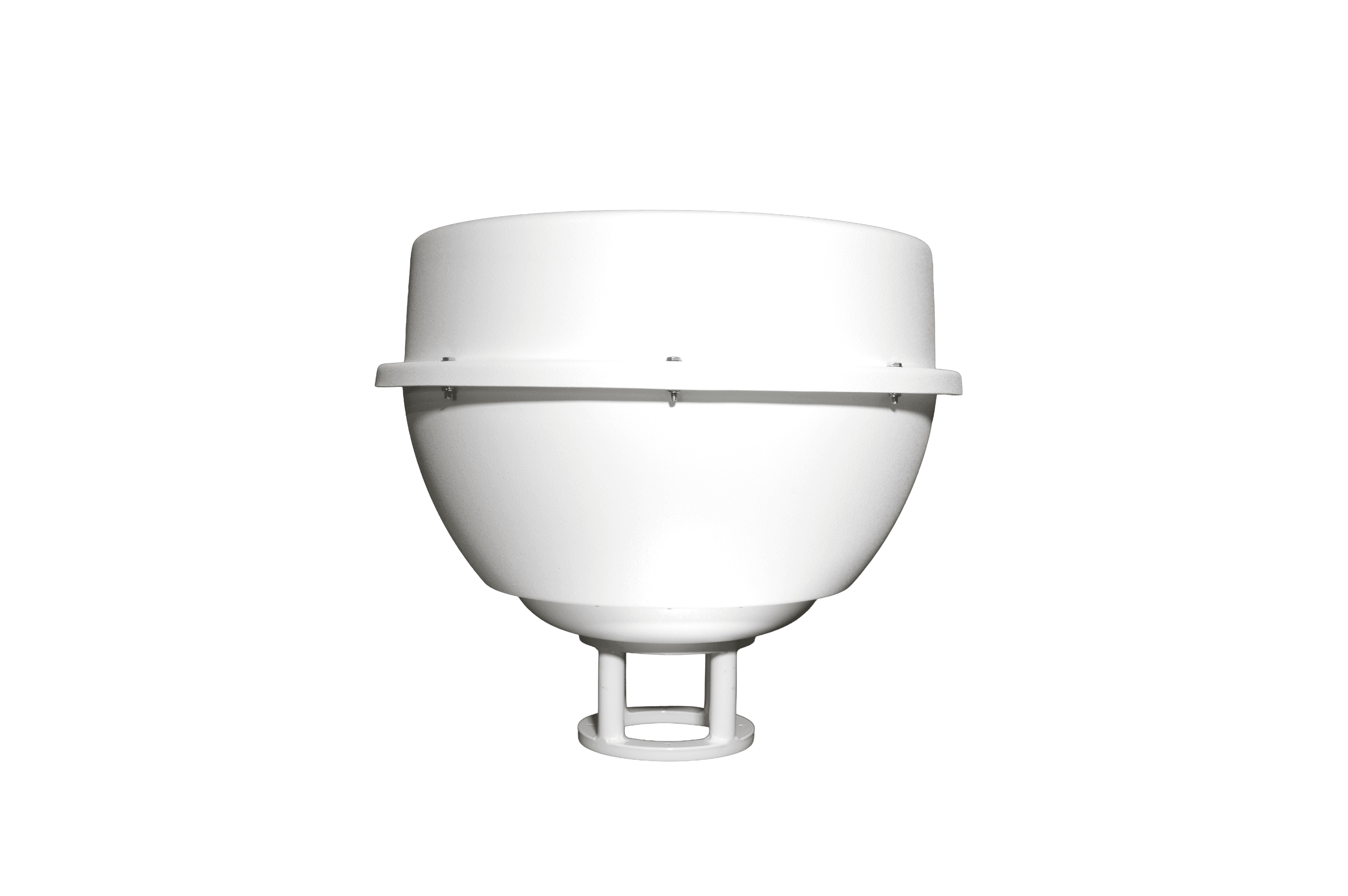

Antenna-Integrated

DF receiver components housed within the antenna assembly. Minimizes below-deck footprint — ideal for platforms with limited internal space.

Varies by antenna model

Compact

Shock-Mount Chassis

All processor and receiver components delivered in a ruggedized, MIL-STD-810H qualified shock-mount chassis for maximum portability.

Typical: 8" x 6" x 4"

Rack-Compatible

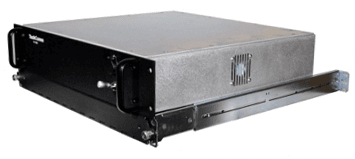

1U / 2U / 3U Chassis

Standard 19-inch rack-mount chassis for integration into existing equipment racks aboard ships, aircraft, and ground stations.

1U–3U, 19" rack standard

Flexible

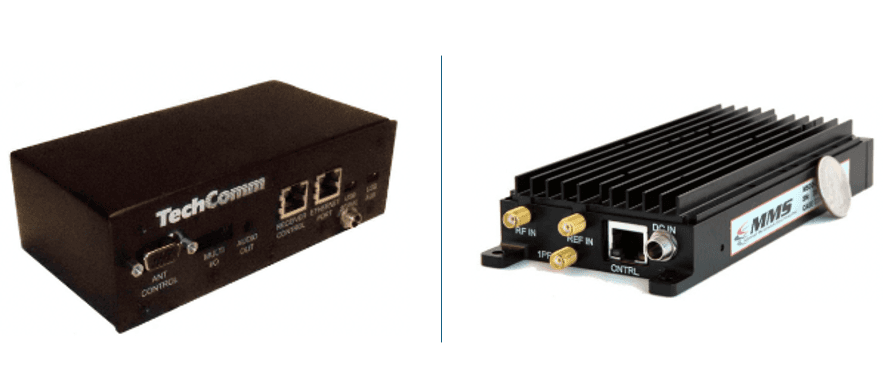

Standalone Delivery

Antenna, receiver, processor, and workstation components delivered as separate units for maximum integration flexibility.

Components shipped individually
